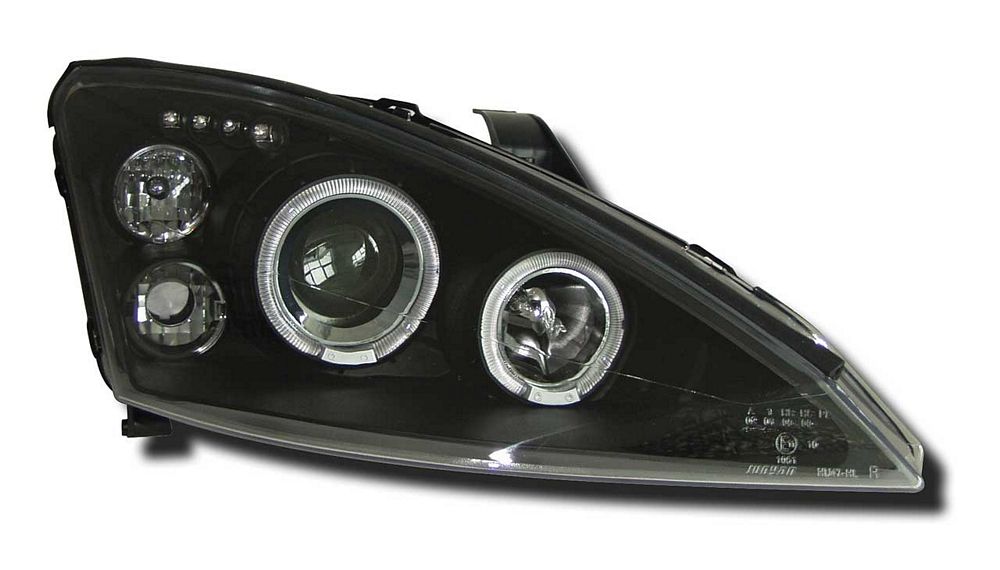

Black Projector Angel Eye Headlights to fit:

FORD Focus Mk1 (10.2001 to 2004)
(Right Hand Drive Only)

Lamp shape for 1998 and 2001 models are identical, but they use a different connector. 2001-04 = oblong/long oval shape

LED rings are not user replaceable. The warranty covers the entire unit if the angel eye ring fails. For safety reasons head lamps should be fitted and adjusted by a professional.

Connecting the angel eye:The rings have free (unconnected) red and black wires. Join the all the black wires to one of the THICK black wires at the connector and insulate the join. Join the red wires to white wire at the connector and insulate join.

If the original lights have electric height adjustment the motors must be transferred to the new lights. Loosen three screws & remove rear panel so manual adjustment pivot can be removed to fit the motor; motor wiring is provided inside panel.

These lamps are only legal for use in countries that drive on the left hand side of the road
